Epson EB-770F Full HD 1080P 3LCD Laser Projector
, ,

Epson EB-770F Full HD 1080P 3LCD Laser Projector

$3,029.00

The dynamic Epson EB-770F delivers stunning HD images up to 150″—which is 2.4 times larger than a 75″ flat panel—and can be easily seen from nearly anywhere in the classroom. Engineered for reliability, this incredibly bright 4,100-lumen display has a 20,000-hour, virtually maintenance-free laser light source, which means there are no lamps to purchase or replace—ever.

Epson

Epson EB-770F Full HD 1080P 3LCD Laser Projector
Model: EB-770F

Note:
Does not come with Ultra-Short Throw Wall Mount (ELPMB62) (purchase separately)

The large, easy-to-read HD display for dynamic classroom environments.

Captivate and inspire students with the eye-catching, easy-to-read display of the EB-770F. With its intelligent ultra short throw design, the dynamic EB-770F delivers stunning HD images up to 150″—which is 2.4 times larger than a 75″ flat panel—and can be easily seen from nearly anywhere in the classroom. Engineered for reliability, this incredibly bright 4,100-lumen1 display has a 20,000-hour, virtually maintenance-free laser light source2, which means there are no lamps to purchase or replace—ever. Providing wireless connectivity with casting capability3 and convenient split screen functionality4, the EB-770F makes it easy for teachers and students to display up to four screens simultaneously. EB-770F supports a variety of aspect ratios, including 16:9 as well as ultra wide 21:9 and 16:6. Offering the flexibility to display on existing whiteboards, the versatile EB-770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.

  • 4,100 lumens of colour and white brightness1
  • Full HD 1080p resolution for exceptional image quality
  • No lamps to replace ever with solid-state laser light source
  • Convenient ultra short throw design
  • 16:9 display with additional support for ultra wide 21:9 & 16:6

Enjoy a dynamic wide screen viewing experience with our Ultra short-throw EB-770F. You may easily change the projection aspect depends on your working space. Maximum screen size is improved up to 150 inch (Diagonal). Have all the content well-viewed with our 21:9 aspect ratio at up to 142″ – newly available for 770F.

Incredible Image Quality

Full HD 1080P Resolution at an exceptional value; accepts 4K content.

Brilliantly rich, crystal-clear detail

With excellent contrast ratio of over 2,500,000:1, EB-760W delivers well-defined image to you – whether it is numbers, pictures, graphs or videos. It’s all about seeing the little details in a better light.

Connect up to 50 devices3

Free downloadable Epson iProjection™ software makes it easy to project up to 4 devices at a time wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs3; with moderator feature6, teachers never lose control of the displayed content.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Brightness:


White Light Output (Normal / Extended): 4,100lm / 2,800lm

Colour Light Output: 4,100lm

Contrast Ratio: Over 2,500,000 : 1

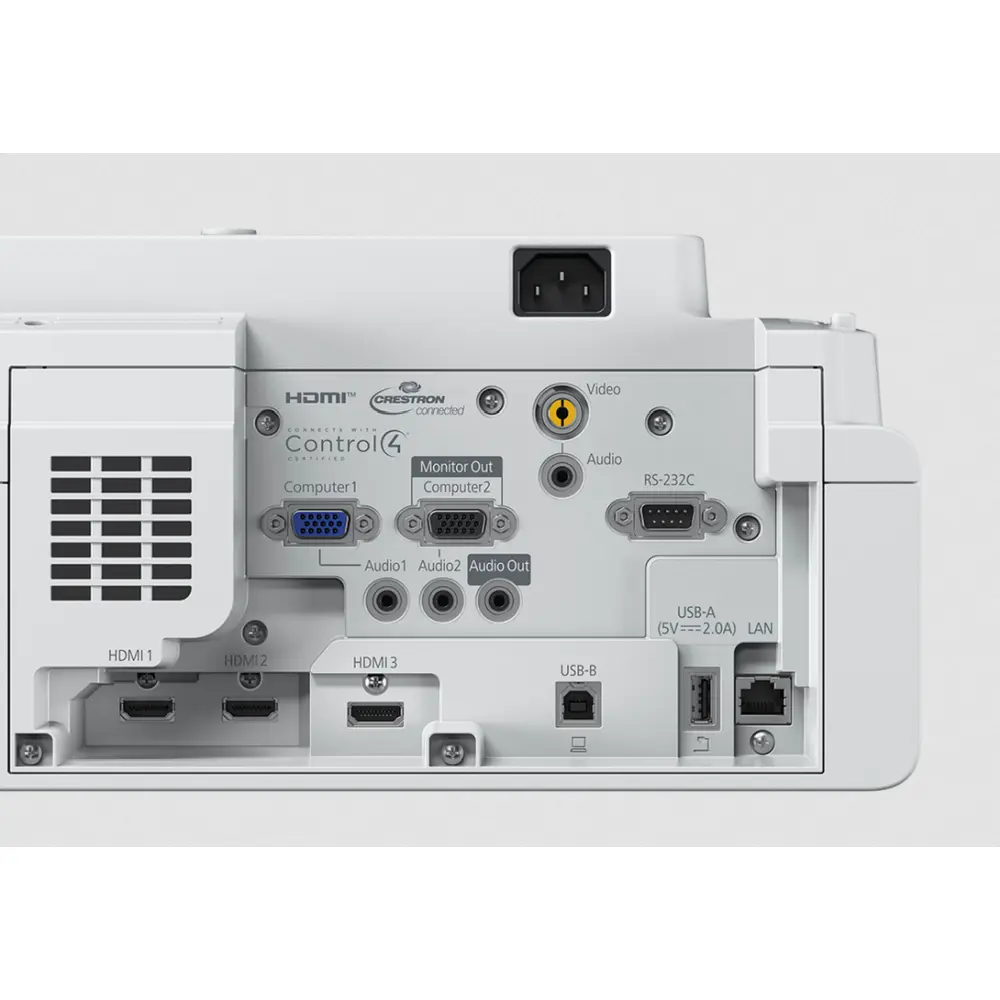

Connectivity:


Analog Input: Computer In: 2
Composite: 1

Digital Input: HDMI In: 3 (HDCP 2.3)

Analog Output: Computer Out: 1 (Share with Computer2)

Audio Input: Audio In: 3 (Stereo Mini)

Audio Output: Audio Out: 1 (Stereo Mini)

Mic I/O: Mic In: 1 (Stereo Mini)

Control I/O: RS232C: 1 (D-sub 9pin)

USB I/O
Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
Type B: 1 (For FW Update, Copy OSD Settings, USB Display)

Network I/O: Wired LAN: 1 (RJ45)
Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:


Vertical/Horizontal Keystone: ±3° / ±3°

Quick Corner: Yes (Manual)

Operating Temperature:


Operating Temperature: 0 – 2,286 m (0 – 7,500 ft): 0 °C – 40 °C [32 °F – 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 – 35 °C [32 °F – 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 10 seconds (Epson Logo)Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 16W Mono



Weight:


Weight: Approx.5.9kg



Air Filter:


Type: Electrostatic Filter

Maintenance Cycle (Normal / Extended) : 12,000 hours / 20,000 hours



Fan Noise:


Fan Noise (Normal / Eco): 37dB / 27dB



Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 395 x 356 x 133mm


Noise Reduction: Yes

Super-Resolution: Yes

Detail Enhancement: Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):


Supported Speed for Each mode : Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps6, IEEE 802.11g (2.4GHz): 54Mbps6 IEEE 802.11n (2.4GHz): 72.2Mbps6,
IEEE 802.11a (5GHz): 54Mbps6, IEEE 802.11n (5GHz): 150Mbps6, IEEE 802.11ac (5GHz): 325Mbps6
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps6, IEEE 802.11n (2.4GHz): 72.2Mbps6,
IEEE 802.11a (5GHz): 54Mbps6, IEEE 802.11n (5GHz): 150Mbps6, IEEE 802.11ac (5GHz): 325Mbps6

Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):


Lamp (Normal / Extended): 263W / 199WStandby: (Network On / Off): 2.0W / 0.5W

Direct Power On / Off:


Direct Power On / Off: Yes

Specifications of Main Parts:


LCD: Size: 0.62” (C2Fine)
Resolution: Full HD

Lightsource: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Projection Lens: Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.25 – 0.35

Screen Size (projected distance): Standard: 77” screen 43.3cm
Zoom (Wide):
56” to 140” (32.5 – 89.3cm) @ 16:6
60” to 150” (32.5 – 89.3cm) @ 16:9
55” to 139” (32.5 – 89.3cm) @ 16:10
57” to 142” (39.4 – 85.3cm) @ 21:9

Warranty:
Projector Standard warranty applies
For laser UST models – light source is 3 years or 12,000 hours whichever comes first, NBD onsite

Brand

Epson

Epson
