Sale!
, ,

Epson EB-770Fi Full HD 1080P 3LCD Laser Projector

$4,219.00

Offering a large full HD interactive display up to 100″, the Epson EB-770Fi provides up to 75 percent more interactive space than a 75″ flat panel—while providing a low cost per square inch.

Epson

Epson EB-770Fi Full HD 1080P 3LCD Laser Projector
Model: EB-770Fi

Note:
Does not come with Ultra-Short Throw Wall Mount (ELPMB62) (purchase separately)

The large, easy-to-read display for captivating interactive lessons.

Offering a large full HD interactive display up to 100″, the EB-770Fi provides up to 75 percent more interactive space than a 75″ flat panel—while providing a low cost per square inch. With 4,100 lumens of color and white brightness1 and proprietary 3-chip 3LCD technology, the EB-770Fi delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions, from nearly anywhere in the classroom.

Flexible and convenient, it supports standard 16:9 as well as ultra wide 21:9 and 16:6 displays with split screen2 to simultaneously display content from a PC or document camera beside an interactive whiteboard canvas. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace—ever3.

  • 4,100 lumens of colour and white brightness1
  • Full HD 1080p resolution for exceptional image quality
  • Ultra wide 21:9 and 16:6 display with split screen2 support
  • Large interactive display up to 100″ (16:9), 110″ (16:6 and 21:9)
  • Multi-user capability for easy collaboration

Enjoy a dynamic wide screen viewing experience with our Ultra short-throw EB-770Fi. You may easily change the projection aspect depends on your working space. Maximum screen size is improved up to 150″ diagonal for 16:9 aspect ratio*. 21:9 is newly available for EB-770Fi**.

*Without interactive function
**Up to 142″ diagonal without interactive function, 110″ diagonal with interactive function

Incredible image quality

Full HD 1080p resolution at an exceptional value; accepts 4K content.

See more, do more

Ultra wide 21:9 and 16:6 display with split screen2 support allows for simultaneous display of whiteboard and digital content

Interactive function

Using Epson EB-770Fi Interactive function, explore meaningful collaboration and discussion of big ideas. Comes with Advance Whiteboard function, two pens and six finger touch point to make collaborations a breeze.

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system

Brightness:


White Light Output (Normal / Extended): 4,100lm / 2,800lm

Colour Light Output: 4,100lm

Contrast Ratio: Over 2,500,000 : 1

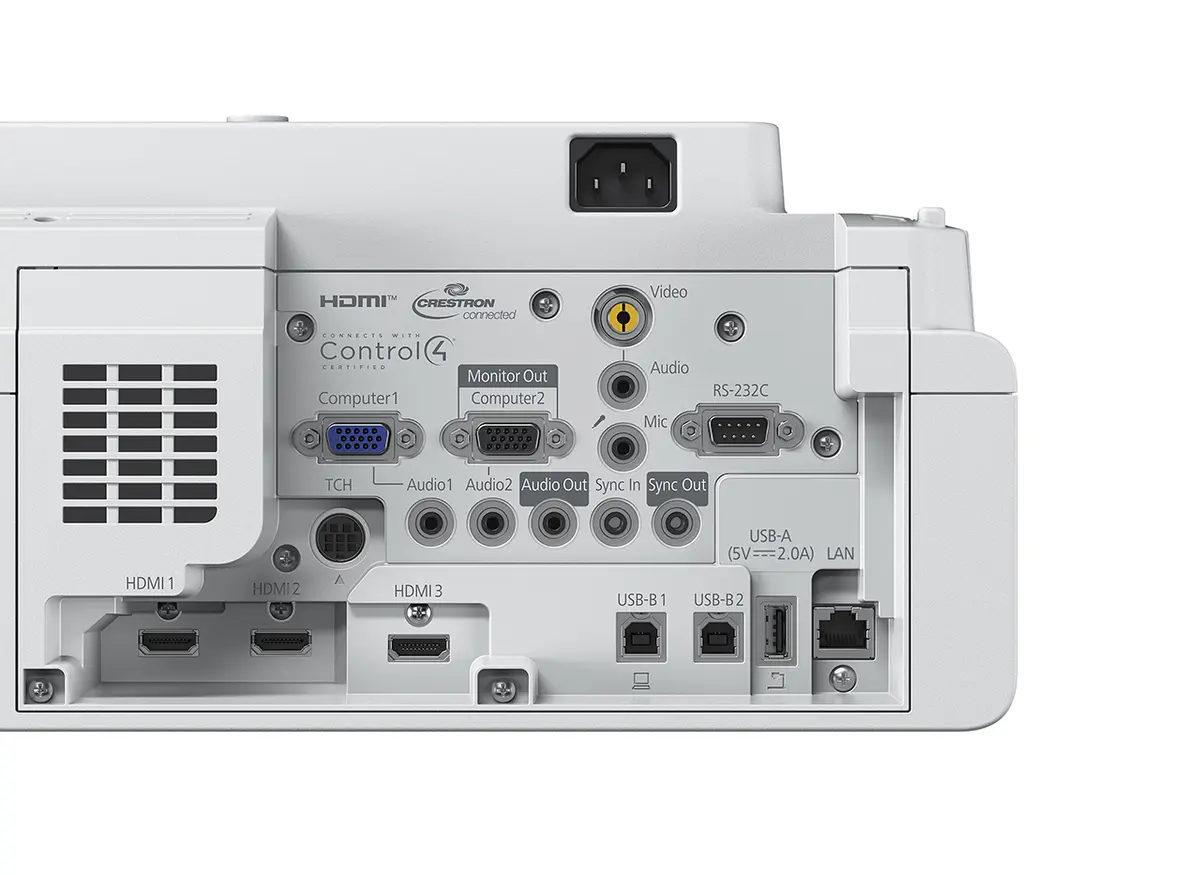

Connectivity:


Analog Input: Computer In: 2
Composite: 1

Digital Input: HDMI In: 3 (HDCP 2.3)

Analog Output: Computer Out: 1 (Share with Computer2)

Audio Input: Audio In: 3 (Stereo Mini)

Audio Output: Audio Out: 1 (Stereo Mini)

Mic I/O: Mic In: 1 (Stereo Mini)

Control I/O: RS232C: 1 (D-sub 9pin)
Interactive Sync: 1 (Stereo Mini)
Finger Touch Unit Control: 1 (Mini DIN 8pin)

USB I/O
Type A: 2 (1 (Side): For PC Free, FW Update, Copy OSD Settings; 1 (Rear): For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
Type B: 2 (For FW Update, Copy OSD Settings, USB Display)

Network I/O: Wired LAN: 1 (RJ45)
Wireless LAN: 1 (Built-in and Optional)

Geometric Correction:


Vertical/Horizontal Keystone: ±3° / ±3°

Quick Corner: Yes (Auto / Manual)

Operating Temperature:


Operating Temperature: 0 – 2,286 m (0 – 7,500 ft): 0 °C – 40 °C [32 °F – 104 °F ] ; 20% to 80% Humidity, No Condensation
Over 2,286 m (7,500 ft): 0 – 35 °C [32 °F – 95 °F] ; 20%-80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 – 3,048 m (0 – 10,000 ft)

Start-Up Period:


Start-Up Period: Less than 10 seconds (Epson Logo)

Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 16W Mono

Weight:


Weight: Weight: Approx. 6kg

Air Filter:


Type: Electrostatic Filter

Maintenance Cycle (Normal / Extended) : 12,000 hours / 20,000 hours

Fan Noise:


Fan Noise (Normal / Eco): 37dB / 27dB

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 395 x 356 x 133

Image:


Noise Reduction: Yes

Super-Resolution: Yes

Detail Enhancement: Yes

Wireless Specification (In-built wireless LAN and Screen Mirroring):


Supported Speed for Each mode : Infrastructure: IEEE 802.11b (2.4GHz): 11Mbps4, IEEE 802.11g (2.4GHz): 54Mbps4 IEEE 802.11n (2.4GHz): 72.2Mbps4,
IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4
Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps4, IEEE 802.11n (2.4GHz): 72.2Mbps4,
IEEE 802.11a (5GHz): 54Mbps4, IEEE 802.11n (5GHz): 150Mbps4, IEEE 802.11ac (5GHz): 325Mbps4

Supported Mode : Infrastructure, Access Point (Wi-Fi Direct)

Wireless LAN Security
Infrastructure: OPEN, WPA2 / WPA3-PSK, WPA2 / WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast ;
Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Power:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220-240V):


Lamp (Normal / Extended): 263W / 199W

Standby: (Network On / Off): 2.0W / 0.5W

Direct Power On / Off:


Direct Power On / Off: Yes

Specifications of Main Parts:


LCD: Size: 0.62” (C2Fine)
Resolution: Full HD

Lightsource: Type: Laser Diode
Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Projection Lens: Type: No Optical Zoom / Focus (Manual)
F-Number: 1.60
Focal Length: 3.7mm
Zoom Ratio: 1 – 1.35 (Digital Zoom)
Throw Ratio: 0.25 – 0.35

Screen Size (projected distance): Standard: 77” screen 43.3cm
Zoom (Wide):
49” to 123” (32.5 – 89.3 cm) @ 4:3
56” to 140” (32.5 – 89.3 cm) @ 16:6
60” to 150” (32.5 – 89.3 cm) @ 16:9
55” to 139” (32.5 – 89.3cm) @ 16:10
57” to 142” (39.4 – 85.3cm) @21:9
Zoom (Wide): (With Interactive function)
59.9” to 100” (32.5 – 57.7 cm) @ 16:9
55.4” to 100” (32.5 – 71.8 cm) @ 16:10
48.9” to 100” (32.5 – 62.8 cm) @ 4:3
55.7” to 110” (32.5 – 69.2 cm) @ 16:6
56.8” to 110” (32.5 – 67.8cm ) @21:9

Warranty:
Projector Standard warranty applies
For laser UST models – light source is 3 years or 12,000 hours whichever comes first, NBD onsite
