Epson EB-810E Extreme Short Throw 4K Enhancement Laser Projector

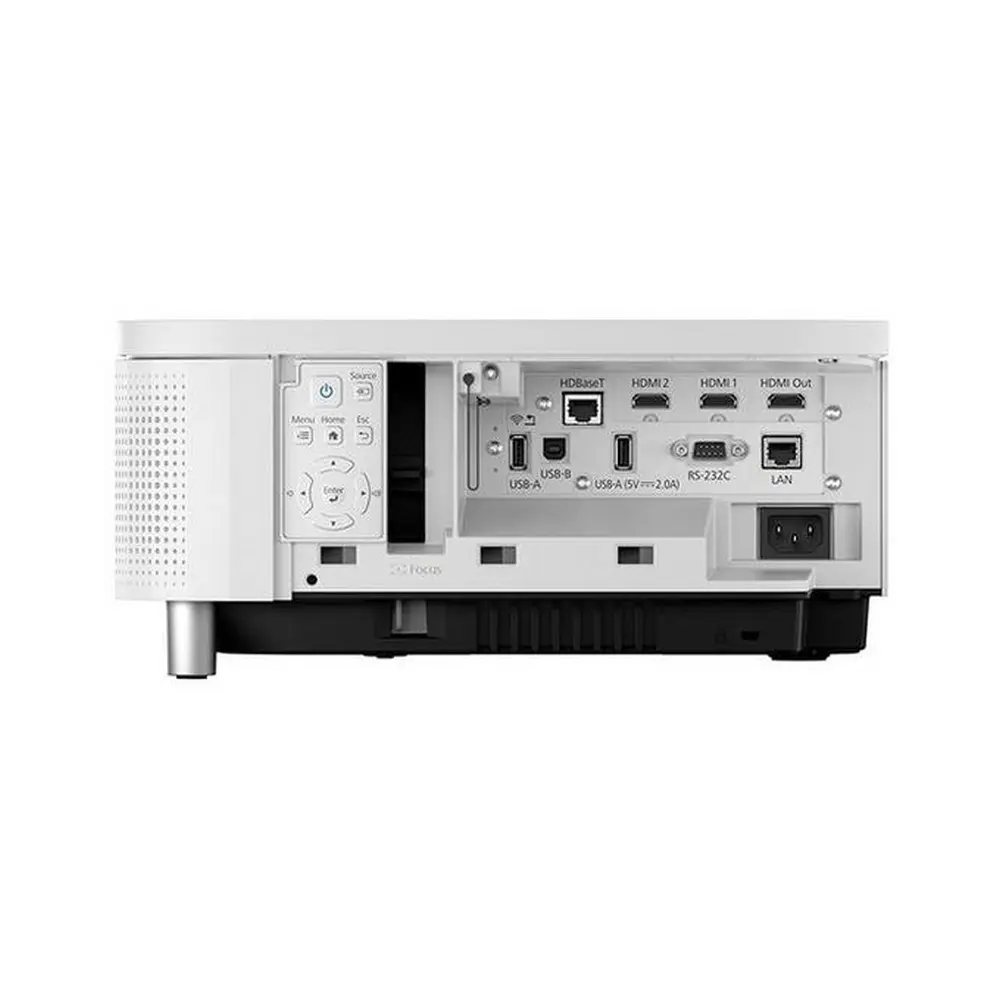

Epson EB-810E Projector Connectors
, ,

Epson EB-810E Extreme Short Throw 4K Enhancement Laser Projector 5000 ANSI

Original price was: $5,819.00.Current price is: $5,599.00.

The Epson EB-810E Extreme Short Throw 4K Enhancement1 Laser Projector is an innovative lamp-free laser display, offering a flexible solution for classrooms and hybrid workspaces. It delivers a bright, glare-free display up to 160″ from just a few centimeters away from the wall, with built-in split-screen and multi-device support for casting.

SKU: EB-810E Categories: , , Tags: , , ,
Epson

Epson EB-810E Extreme Short Throw 4K Enhancement Laser Projector 5000 ANSI
Model: EB-810E

Note:
Does not come with Extreme Short Throw Wall Mount (ELPMB75) (purchase separately)



 Take classroom and meeting room displays beyond the limits of flat panels.



The EB-810E Extreme Short Throw 4K Enhancement1 Laser Projector is an innovative lamp-free laser display, offering a flexible solution for classrooms and hybrid workspaces. It delivers a bright, glare-free display up to 160″ from just a few centimeters away from the wall, with built-in split-screen and multi-device support for casting.

It supports various display ratios for hybrid meetings, has a long-lasting laser light source, and offers versatile connectivity. With an optional wall mount, it can transform traditional whiteboards into vibrant displays, and installation is easy with the Epson Setting Assistant app. Elevate your display beyond ordinary flat panels with the Epson EB-810E.

  • 3LCD technology; 5,000 lumens of colour/white brightness
  • 1080p with 4K Enhancement1 for stunning image clarity
  • Up to 160-inch screen size; 4.5x larger than a 75-inch flat panel
  • Easy integration with native 16:9 aspect ratio, supports 16:10, 21:9, 16:6



Laser display for meeting rooms and digital signage that goes beyond the limits of ordinary flat panels
Projected images simulated.

The EB-810E Extreme Short Throw 4K Enhancement1 Laser Projector can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low-cost, energy-efficient large display solution with a convenient and quick set up.

  • Lamp-free technology

    Laser diode technology combined with a sophisticated re-engineered cooling system offers up to 30,000 hours of virtually maintenance-free operation3

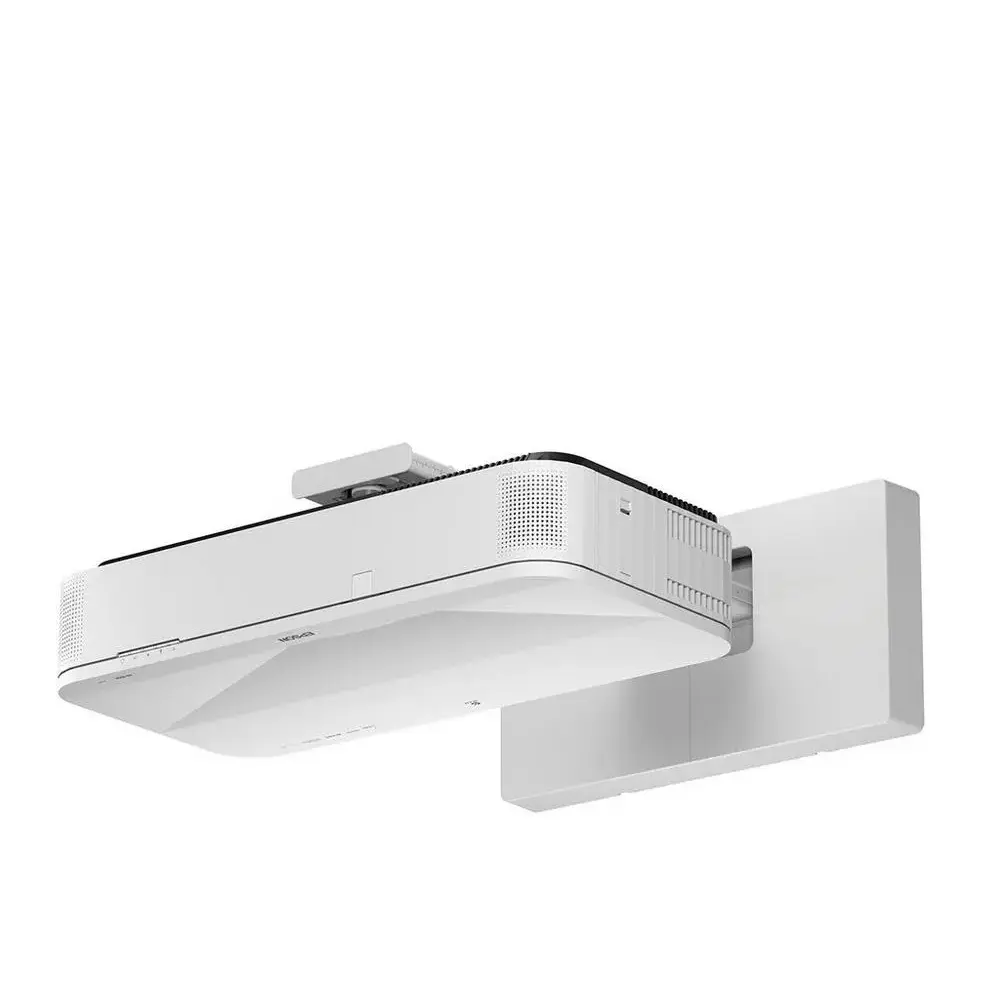

    Product is shown with optional wall mount. Projected images simulated.

    Stunning colour and impactful image quality with 3LCD technology

    Virtually glare-free from anywhere in the room, unlike flat panels; 5,000 lumens of colour and white brightness2



    With 5,000 lumens colour light output and 3LCD technology, the EB-810E offers bright and vibrant up-to 160″, which enables content visibility from all angles and distances. The experience is immersive and it’s extremely simple to use.

    Astonishingly smooth display with 4K Enhanced resolution1

    Epson’s advanced pixel-shifting technology combined with innovative frame interpolation, HDR and scene adaptive gamma image processing provides visibly smooth and more detailed picture quality
    Product is shown with optional wall mount. Projected image simulated.

    Extreme short throw — large, up to 160″ diagonal image

    80″ image from just 1″ away from the wall or 100″ from 4″ away; at under 28 pounds, this lightweight projector can deliver an image up to 160″ diagonal; 4.5 times larger than a 75″ flat panel
    Product is shown with optional wall mount. Projected images simulated.

    Built-in flexible digital canvas for easy integration

    16:9 native aspect ratio with additional support for ultra wide 16:6 and 21:9 for equitable conferencing experience in meeting rooms Laptops
    Laptops not included. Projected images simulated.

    In addition to a standard 16:9 display, the EB-810E goes beyond the limits of ordinary flat panels by supporting an ultra wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen.



Extreme short throw- large, up to 160″ diagonal image

80″ image from just 2.3cm* away from the wall or 100″ from 9.8cm* away; at approximately 12.5kg, this lightweight projector can deliver an image up to 160″ diagonal; 4.5 times larger than a 75″ flat panel

* from the wall to front of projector

Projected images simulated.

EB-810E’s extreme short throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows. The projector also comes with versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device support for content sharing.

Built-in flexible digital canvas for easy integration

16:9 native aspect ratio with additional support for ultra wide 16:6 and 21:9 for equitable conferencing experience in meeting rooms and collaborative hybrid workspaces, as well as captivating digital signage

In addition to a standard 16:9 display, the EB-810E goes beyond the limits of ordinary flat panels by supporting an ultra wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen.

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness:

White Light Output (Normal / Extended): 5,000lm / 3,500lm
Colour Light Output: 5,000lm

Connectivity:

Digital Input: HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)
Control I/O: RS-232C: 1 (D-sub 9-pin)
USB Input: USB Type A: 2 (Port1 for for PC Free, Firmware update, Copy OSD Settings, ELPAP11; Port 2 for PC Free, Firmware update, Copy OSD Settings or 5V/2A Power Supply
USB Type B: 1 (For Firmware update, Copy OSD Settings)
Network I/O: Wired LAN: 1 (RJ45)
Wireless LAN: In-built and Optional (using USB-A Port 1)
Digital Video Output: HDMI: 1 (HDCP 2.3)

Contrast Ratio:

Contrast Ratio: Over 2,500,000:1

Geometric Correction:

Quick Corner: Yes

Operating Temperature:

Operating Temperature: Low Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 – 104°F>
High Altitude (Over 2,286m/7,500ft): 0 – 35 °C <32 – 95 °F>
20% – 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period: Less than 6 seconds (Epson Logo); Warm-up Period: less than 30 secQuick Start-Up: Less than 12 seconds (Display)

Cool Down Period:

Cool Down Period: Instant Off

Internal Speaker(s):

Sound Output: 8 W x 8 W Stereo

Direct Power On/Off:

Direct Power On/Off: Yes

Weight:

Weight: Approx. 12.5 kg

Air Filter:

Type: Electrostatic Filter
Maintenance Cycle3 : 20,000 hours (Normal)

Fan Noise:

Fan Noise (Normal / Eco): 35dB / 26dB

Adjustment Functions:

Frame Interpolation: Yes
Image Adjustment: 4K Enhancement, Image Present Mode, Noise reduction

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H): 341 x 695 x 145 mm

Screen Size (Projected Distance – Lens to Screen):

Zoom : Wide: 80″ to 160″ [27.8cm to 57.8cm] @16:9
66″ to 130″ [28.1cm to 57.4cm] @4:3
74″ to 148″ [27.8cm to 57.8cm] @16:10
76″ to 151″ [27.9cm to 57.5cm] @21:9
75″ to 148″ [28.0cm to 57.4cm] @16:6
Zoom : Tele: 60″ to 118″ [28.2cm to 57.5cm] @16:9
49″ to 96″ [28.2cm to 57.2cm] @4:3
55″ to 109″ [27.9cm to 57.4cm] @16:10
57″ to 112″ [28.2cm to 57.6cm] @21:9
56″ to 110″ [28.3cm to 57.6cm] @16:6

Wireless Specifications (Screen Mirroring, In-built and Optional wireless LAN):

Supported Speed for each Mode: Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps4
IEEE 802.11g (2.4GHz): 54 Mbps4
IEEE 802.11n (2.4GHz): 72.2 Mbps4
IEEE 802.11a (5GHz): 54 Mbps4
IEEE 802.11n (5GHz): 150.0 Mbps4
IEEE 802.11ac (5GHz): 325Mbps4

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps4
IEEE 802.11n (2.4GHz): 72.2 Mbps4
IEEE 802.11a (5GHz): 54 Mbps4
IEEE 802.11n (5GHz): 150.0 Mbps4
IEEE 802.11ac (5GHz): 325Mbps4
Supported Mode: Infrastructure, Access Point(Wi-Fi Direct)
Supported Security Type: Infrastructure: OPEN (WPA2/WPA3-PSK/ WPA2/WPA3-EAP)
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
Access Point (Wi-Fi Direct) : WPA2-PSK (AES)

Main Parts Specification:

LCD: Size: 0.62″ (C2 Fine)
Resolution: 1080P (4KE)
Aspect Ratio: 16:9
Projection Lens: Type: Focus (Manual)
F-Number: 1.8
Focal Length: 2.3mm
Zoom Ratio: 1 – 1.35 (Digital zoom)
Throw Ratio: 0.16 – 0.22 (Wide – Tele)

Power:

Power Consumption: LD On (Normal / Quiet / Extended): 380W / 286W
Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Lightsource:

Type: Laser Diode
Light Source Life (Normal/ Extended): 20,000 / 30,000 hrs

Colour Mode:

Colour Mode: Dynamic, Presentation, Cinema, Natural, Blackboard, DICOM SIM, Multi-Projection, Face Brightness

Warranty:
Projector Standard warranty applies
For laser UST models – light source is 3 years or 12,000 hours whichever comes first, NBD onsite
