Epson EB-L630U 3LCD Projector 6200 ANSI WUXGA Laser

$5,249.00

The compact, low running cost Epson EB-L630U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 6,200 lumens of white & colour brightness*2. This robust projector also offers WUXGA resolution.

Epson

Epson EB-L630U 3LCD Projector 6200 ANSI WUXGA Laser
Model: EB-L630U
UPC: V11HA26040

Robust, Compact WUXGA Laser Projector with 6,200lm and Built-In Wireless



The compact, low running cost EB-L630U laser projector delivers powerful performance for education and business applications. Get bright, vivid images with 6,200 lumens of white & colour brightness*2. This robust projector also offers WUXGA resolution. Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours*1 and offers virtually maintenance-free operation with no lamps. Plus, it features an optical zoom of up to 1.6x. It also supports split screen function of up to 4 screens enabling better information sharing and wide lens shift for greater flexibility. Besides this, it also comes with flexible settings for image enhancement to further sharpen image resolution to your preferences. It is compatible with the Epson Wireless Presentation System** which enables hassle-free connectivity for better productivity.

  • 6200 lumens of color and white brightness*2
  • 20,000-hour*1 laser light source with no lamps
  • WUXGA resolution
  • Built-in Wireless
  • 1.6x Optical Zoom
  • Screen size of up to 500″

Higher Energy Efficiency & Eco-friendly

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.



Wide Lens Shift

Wide lens shift of V : ±50%, H : ±20% for a great deal of flexibility when installing projectors and avoid image quality deterioration by using keystone correction.



Super Resolution & Detail Enhancement

Flexible settings for image enhancement to sharpen image resolution to your preference



Built-In Wireless Function

Project directly from your smart device with built-in Wi-Fi and Miracast functions without installing extra drivers.

What’s in the box:

Power Cable (3m)
Remote Control with 2x AA Battery
User Guide
Cable Cover

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

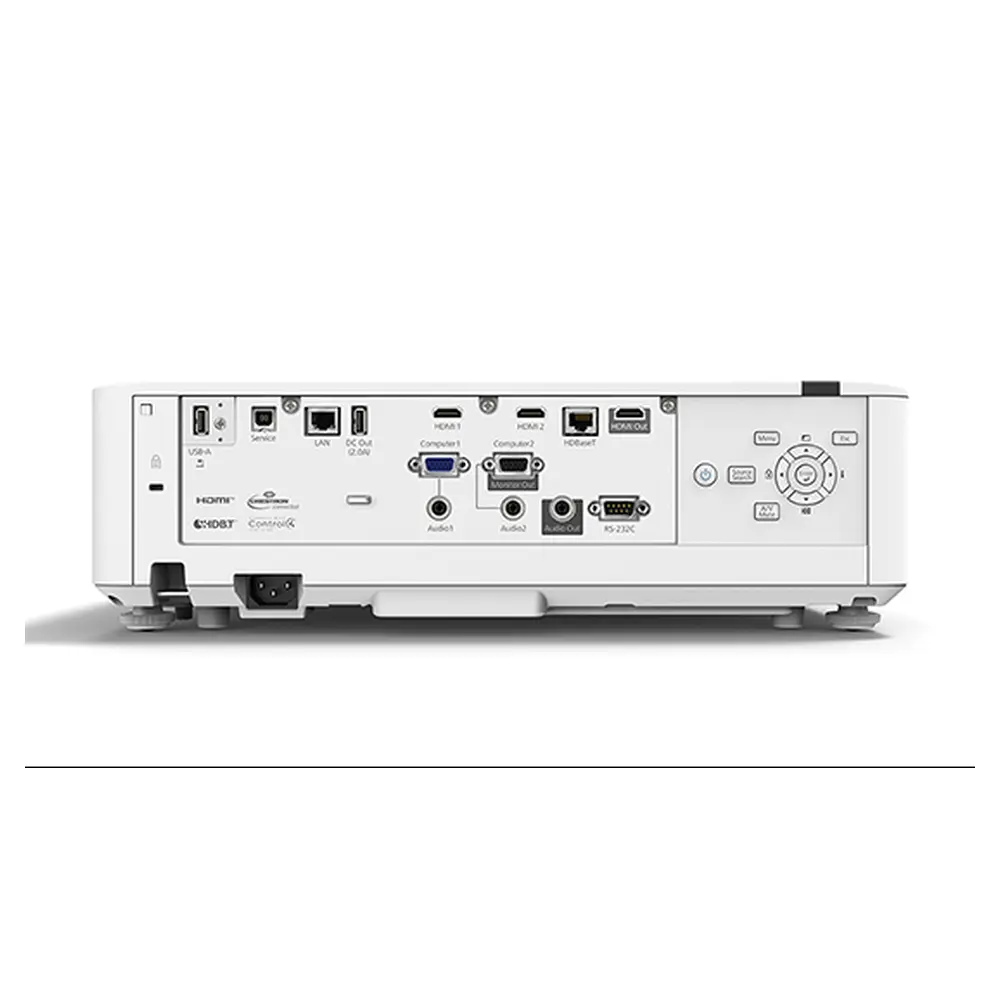

Connectivity:


Network: Wired LAN RJ45 x 1 (100Mbps)
Built-in Wireless: Yes
Optional Wireless: ELPAP11 Analog Input: D-Sub 15Pin: 2Digital Input: HDMI: 2 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)Audio Input: Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Control I/O: RS-232C: D-Sub 9pin x 1USB Input: USB Type A: 2 (Port 1 for PC Free, Firmware Update, Copy OSD Settings; Port 2: for 5V/2A power supply only, no USB function)Analog Video Output: D-Sub 15Pin: 1Digital Video Output: HDMI: 1 (HDCP 2.3)
HDBaseT: 1 (HDCP 2.3)

Contrast Ratio:


Contrast Ratio: Over 2,500,000:1

Screen Size (Projected Distance):


Zoom : Wide: 50″ – 500″ [1.44 – 14.76 m] Zoom : Tele: 50” – 500” [2.35 – 23.84 m]

Geometric Correction:


Vertical/Horizontal Keystone: ±30º / ±30º Projection Orientation: 360º Free

Operating Temperature:


Single Use: Low Altitude (0 – 2,286m/7,500ft): 0 – 45 °C <32 – 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 40 °C <32 – 104 °F>
20% – 80% Humidity, No CondensationMulti-projection Use: Low Altitude (0 – 2,286m/7,500ft): 0 – 40 °C <32 – 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 – 35 °C <32 – 95 °F>
20% – 80% Humidity, No Condensation

Operating Altitude:


Operating Altitude: Over 1,500m/4,921ft with High Altitude Mode: 0 – 3,048m (0 -10,000ft)

Start-Up Period:


Start-Up Period: 8 sec (Epson Logo); Warm-up Period: 30 sec Quick Start-Up: Less than 5 seconds (Display)

Cool Down Period:


Cool Down Period: Instant Off

Internal Speaker(s):


Sound Output: 10W Monaural

Direct Power On/Off:


Direct Power On/Off: Yes

Weight:


Weight: Approx. 8.4kg

Air Filter:


Type: Electrostatic Filter Maintenance Cycle*4: 20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:


Fan Noise (Normal / Eco): 38dB / 27dB

Dimension Excluding Feet:


Dimension Excluding Feet (D x W x H): 304 x 440 x 122 mm

Brightness:


White Light Output (Normal / Extended): 6,200lm / 4,340lmColour Light Output: 6,200lmLight Output (Center): 6,500lm*

Wireless Specification (In-built wireless LAN and Screen Mirroring):


Supported Speed for Each mode : Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3Supported Mode : Supported Mode: Infrastructure, Access Point(Wi-Fi Direct)Supported Security Type: Infrastructure:
OPEN, WPA2/WPA3-PSK
WPA2/WPA3-EAP

Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast)

Access Point(Wi-Fi Direct):
WPA2-PSK(AES)

Wireless Specification (Using Optional ELPAP11):


Supported Speed for Each mode : Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3Supported Mode : Access Point (Wi-Fi Direct)Supported Security Type: Access Point (Wi-Fi Direct): WPA2-PSK (AES)

Specifications of Main Parts:


LCD: Size: 0.67″ (C2 Fine)
Resolution: WUXGA
Aspect Ratio: 16:10 Lightsource: Type: Laser Diode
Life*1: 20,000 hours (Normal) / 30,000 hours (Extended) Projection Lens: Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 – 31.8 mm
Zoom Ratio: 1.0 – 1.60
Throw Ratio: 1.35 – 2.20 (Wide – Tele)

Power Supply Voltage:


Power Supply Voltage: 100 – 240 V AC ±10%, 50/60 Hz

Power Consumption (220 – 240V):


Laser Diode ON (Normal / Extended): 345 W / 258W Stand By: (Normal/Eco): 2.0W / 0.3W

Warranty: 3yrs Parts & Labor Carry- In for Projector Main Unit
For laser models – light source is 3 years or 12,000 hours whichever comes first
