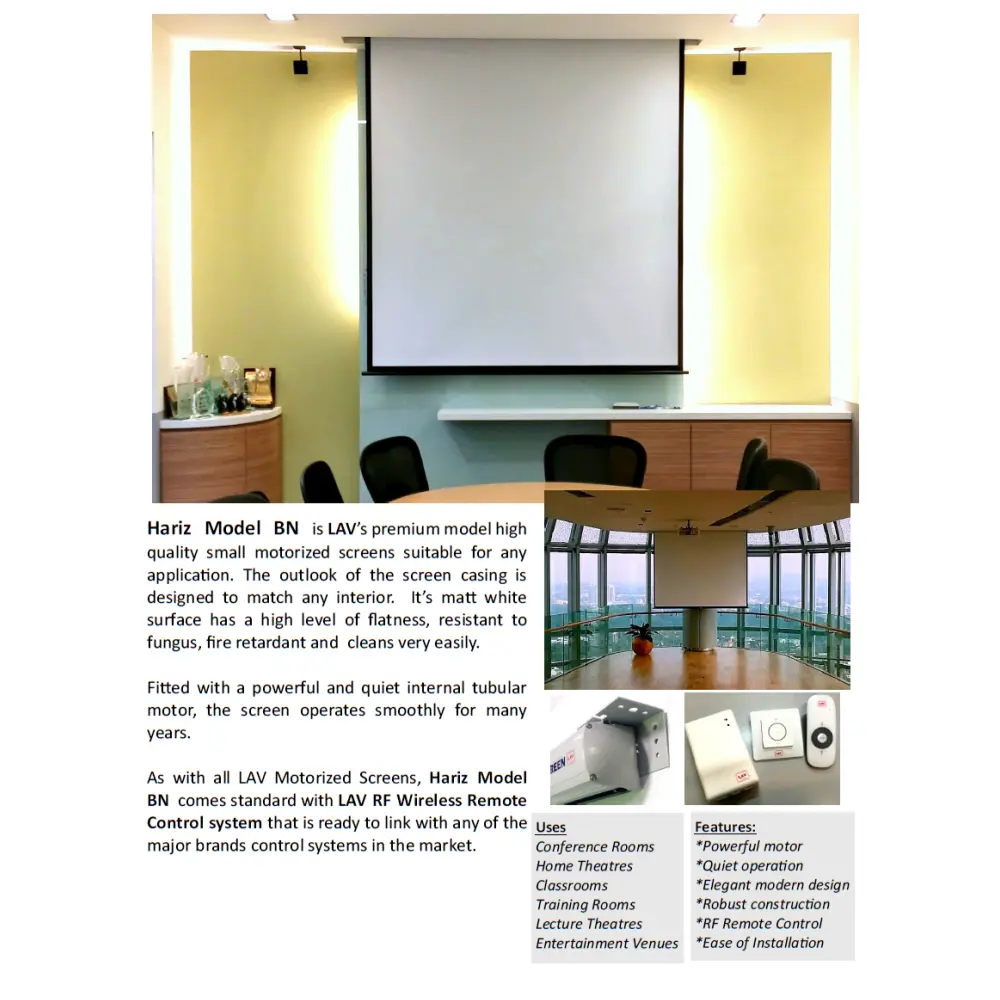

The Lav Hariz Model-BN is a high quality motorized Projector screen suitable for any application. It can be mounted from the wall or the ceiling and may be repositioned by sliding sideways. Unlike other screens, the Hariz Model-BN comes with an option for end-users to coat the casing with special S-Print patterns to match most boardroom cabinets, fixtures or themes so that it will blend in with the decor elegantly thus doing away with the hassle of keeping it hidden from view.
The Lav Hariz Model-BN are manufactured in Singapore with the strictest quality control. These screens come with Singapore manufacture onside warranty.
Quality Score
We rate the Lav Hariz Model-BN with a Quality Score of: 5/5
D-NEXUS recommends LAV projector screens for its Quality Control, local Singapore on-site Warranty and peace of mind.
What’s a Quality Score?
Features and Benefits
| Economical |
| Durable |
| Ease of installation |
| User-friendly |
| Smooth operation |
| Silent motor |
| Precise stop position using remote control |

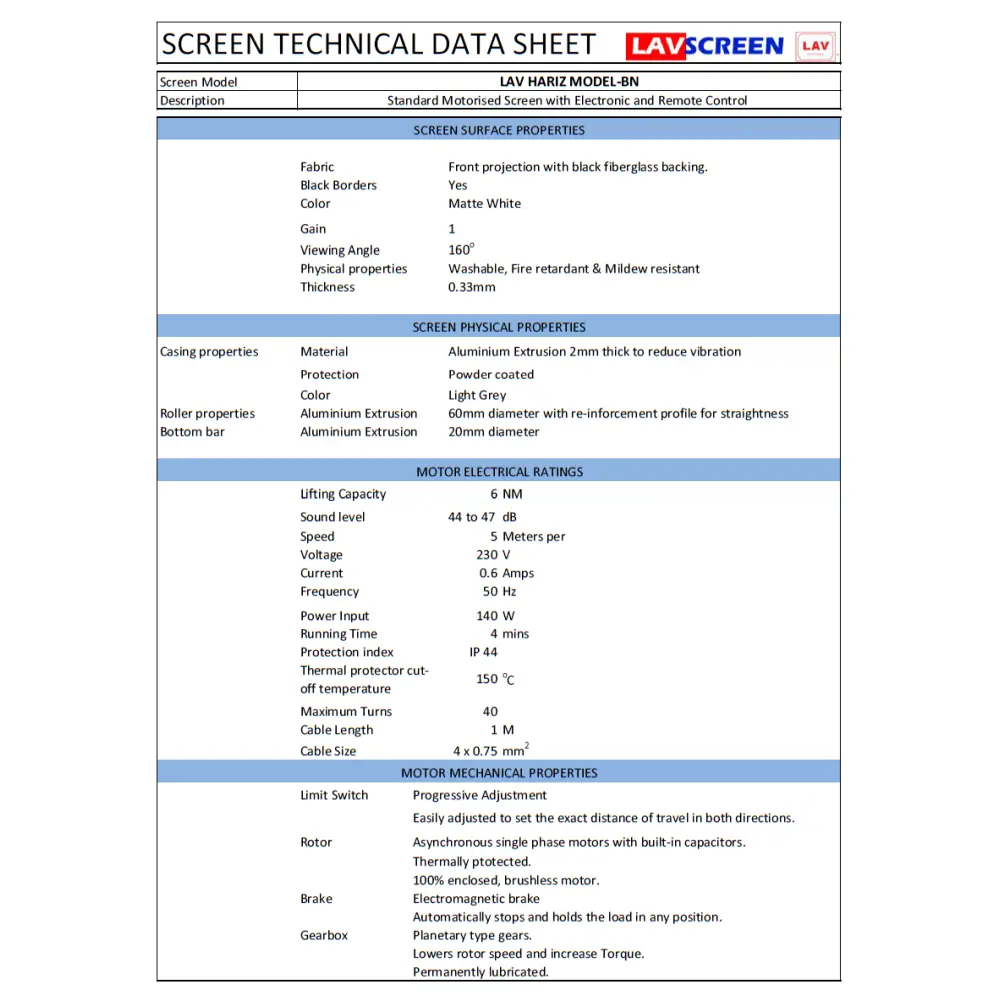

Specification
| Format | Model | Viewing Screen size (mm) | Overall Fabric Screen size (mm) | Chassis Length(mm) | Chassis Height(mm) | Weight(Kg) |
| 1 : 1 (Square) | L60x60EMW | 1464L x 1584H | 1524L x 1554H | 1724 | 110 | 10.50 |
| 1 : 1 (Square) | L70x70EMW | 1718L x 1778H | 1778L x 1808H | 1978 | 110 | 11.80 |
| 1 : 1 (Square) | L84x84EMW | 2074L x 2134H | 2134L x 2164H | 2334 | 110 | 13.80 |
| 1 : 1 (Square) | L96x96EMW | 2379L x 2439H | 2439L x 2469H | 2639 | 110 | 15.60 |
1:1 formats have 3 side borders (left, right and bottom)
| Format | Model | Viewing Screen size (mm) | Overall Fabric Screen size (mm) | Chassis Length(mm) | Chassis Height(mm) | Weight(Kg) |
| 4 : 3 (Video) | H60x80EMW |
2032L x 1524H | 2092L x 1554H | 2292 | 110 | 13.90 |
| 4 : 3 (Video) | H72x96EMW | 2378L x 1829H | 2438L x 1859H | 2368 | 110 | 15.70 |
3:4 formats have 3 side borders (left, right and bottom)
| Format | Model | Viewing Screen size (mm) | Overall Fabric Screen size (mm) | Chassis Length(mm) | Chassis Height(mm) | Weight(Kg) |
| 16 : 9 (HDTV) | H45x80EMW |
2032L x 1143H | 2092L x 1427H | 2430 | 110 | 12.90 |
| 16 : 9 (HDTV) | H54x96EMW |
2378L x 1372H | 2438L x 1656H | 2828 | 110 | 14.60 |
16:9 formats have 4 side borders (left, right, bottom and a 10inches top Border)
Warranty:
1 year Local On-Site Warranty against manufacturing defects
*Optional Installation for Motorized Projector Screen
Having trouble getting your Projector Screen fixed up, we can do it for you! Get your screen installed in a wide variety of venues, including homes, houses of worship, conference centers, classroom facilities, Offices, and many other businesses.
Includes:
- 1 Wall Receptacle Surface Trunking Mounting procedure of motorised projector screen onto wall as per specifications.
- Technical wiring of screen motor circuitry Installation of control switch panel/box
- Testing and Commissioning
- Clean up work area and remove installation debris *(All cables length up to 15 meters)
- Please note: – Electrical Power Point is required at location of Screen Installation. – Separate charges will be incurred for installation of Power Point.
Please note:
- For Ceiling mounting : Height from floor to ceiling cannot exceed 4m.
