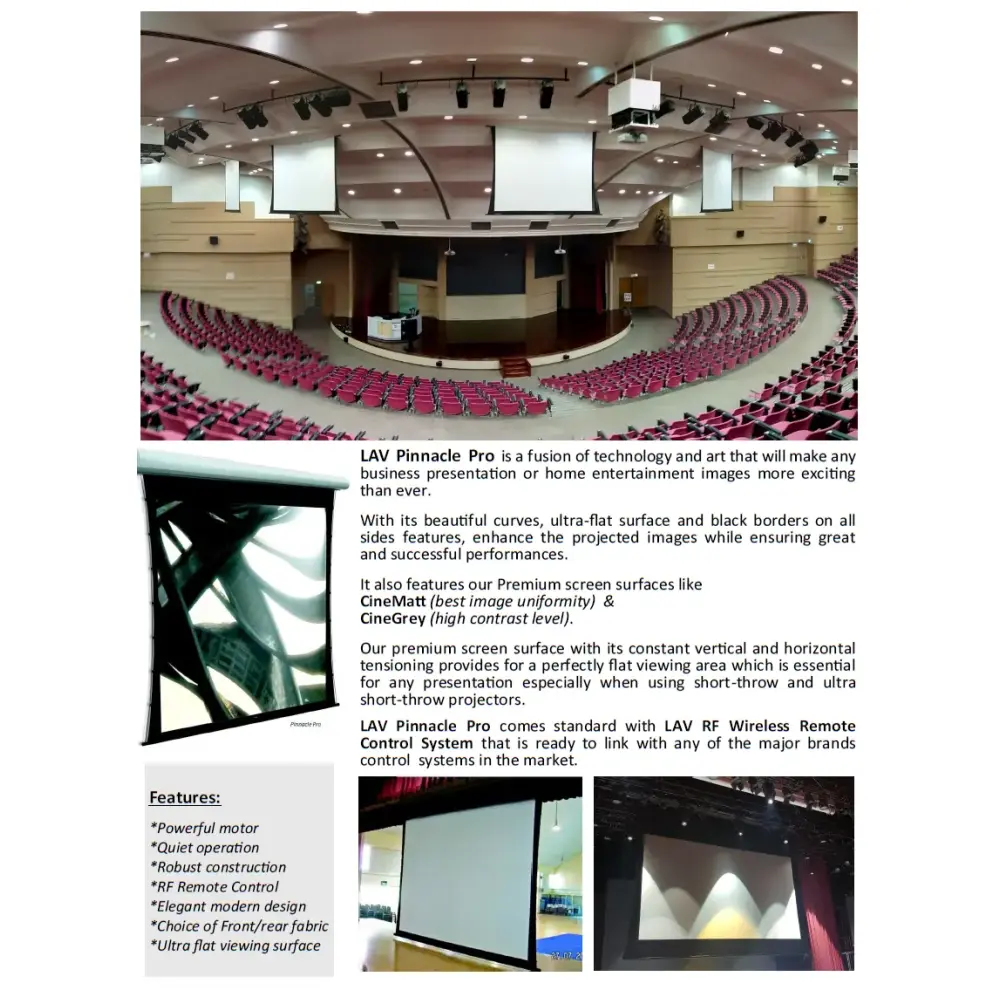

The Pinnacle series is a fusion of technology and art that makes your presentation and home entertainment more exciting than ever.
It’s built with a powerful motor in a robustly constructed but elegantly designed casing. The side strings apply tension all around ensuring an ultra-flat surface. Together with its beautiful curves and black borders on all sides features, enhance every projected image beautifully while ensuring great and successful performances.
It’s clever design allows for ease of installation and any future services and ensures smooth operation for many years.
LAV Pinnacle Series comes standard with LAV RF Wireless Remote Control System that is ready to link with any of the major brand control systems in the market.
Features:
- Powerful motor
- Quiet operation
- Aluminium construction
- IR remote control
- Super elegant modern design
- Matching colours and patterns
| Format | Model | Screen size (mm) | Chassis Length(mm) | Chassis Height(mm) | Weight(Kg) |
| 1 : 1 (Square) | PNO60x60MW | 1753 x 1829 | 1987 | 103 | 11.66 |
| 1 : 1 (Square) | PNO70x70MW | 2007 x 2083 | 2241 | 103 | 12.56 |
| 1 : 1 (Square) | PNO84x84MW | 2362 x 2438 | 2596 | 103 | 14.56 |
| 1 : 1 (Square) | PNO96x96MW | 2667 x 2743 | 2901 | 103 | 16.63 |
| Format | Model | Screen size (mm) | Chassis Length(mm) | Chassis Height(mm) | Weight(Kg) |
| 4 : 3 (Video) | PNO50x67MW | 1935 x 1585 | 2169 | 103 | 11.84 |
| 4 : 3 (Video) | PNO54x72MW | 2057 x 1676 | 2291 | 103 | 12.46 |
| 4 : 3 (Video) | PNO60x80MW | 2261 x 1829 | 2495 | 103 | 13.52 |
| 4 : 3 (Video) | PNO72x96MW | 2667 x 2134 | 2901 | 103 | 15.71 |
| Format | Model | Screen size (mm) | Chassis Length(mm) | Chassis Height(mm) | Weight(Kg) |
| 16 : 9 (Movie) | PNO35x63MW | 1822 x 1201 | 2056 | 103 | 11.06 |
| 16 : 9 (Movie) | PNO41x73MW | 2088 x 1351 | 2322 | 103 | 12.33 |
| 16 : 9 (Movie) | PNO44x78MW | 2221 x 1425 | 2455 | 103 | 12.98 |
| 16 : 9 (Movie) | PNO49x87MW | 2442 x 1550 | 2676 | 103 | 14.08 |
Warranty: 1 year against manufacturing defects
*Optional Installation for Motorized Projector Screen
Having trouble getting your Projector Screen fixed up, we can do it for you! Get your screen installed in a wide variety of venues, including homes, houses of worship, conference centers, classroom facilities, Offices, and many other businesses.
Includes:
- 1 Wall Receptacle Surface Trunking Mounting procedure of motorised projector screen onto wall as per specifications.
- Technical wiring of screen motor circuitry Installation of control switch panel/box
- Testing and Commissioning
- Clean up work area and remove installation debris *(All cables length up to 15 meters)
- Please note: – Electrical Power Point is required at location of Screen Installation. – Separate charges will be incurred for installation of Power Point.
Please note:
- For Ceiling mounting : Height from floor to ceiling cannot exceed 3m.
