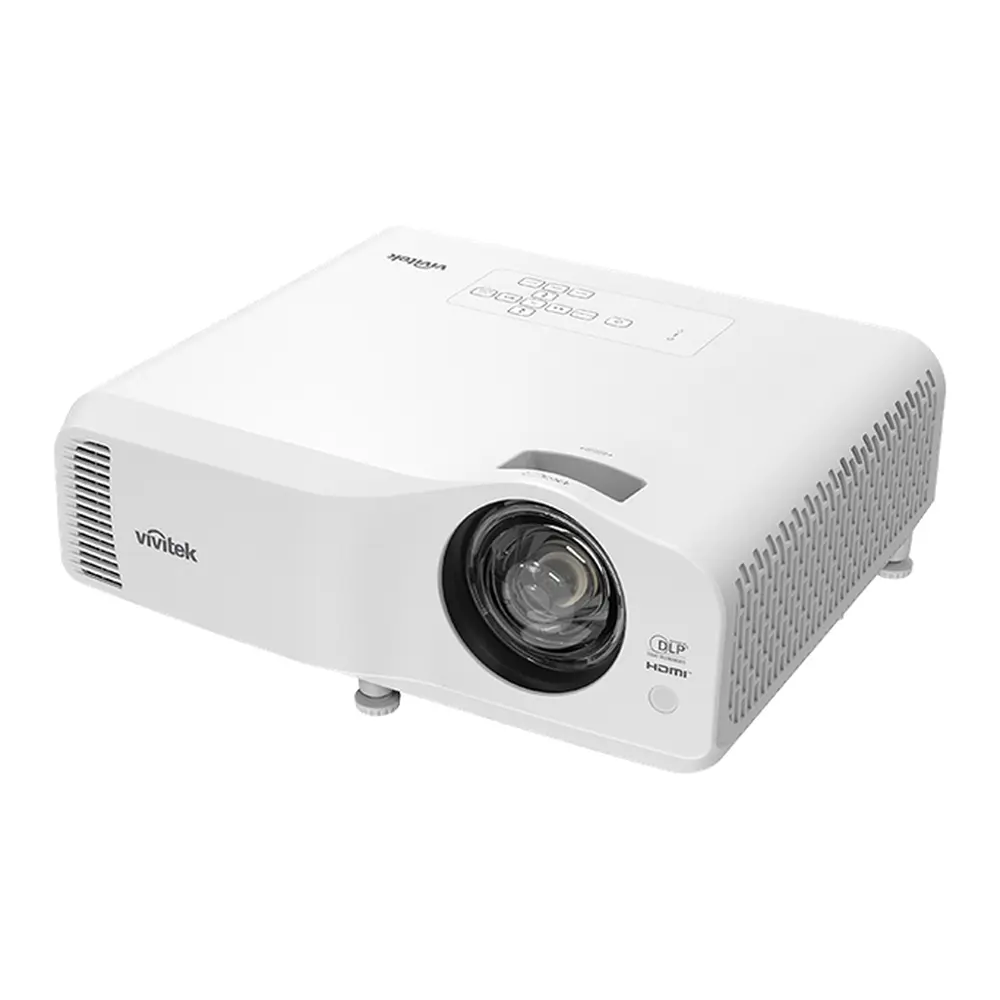

Vivitek DW2350Z-ST Projector Laser WXGA 3800 lm short-throw
Model: DW2350Z-ST
Warranty: 3 years warranty, laser 3 years or 20,000 hours
Overview
The DW2350Z-ST is cost-effective laser projector weighted only 4.5kg, designed with low cost of ownership and maintenance for up to 30,000hours. Integrated DLP® Darkchip3 and BrilliantColor technology together ensure brilliant pictures, with optimal black levels and vivid, colorful images. The DW2350Z-ST is perfect for education application that require a high brightness, high contrast ratio and flexible installation with H/V keystone, and 4-corner adjustment. The DW2350Z-ST is built-in dual HDMI ports for sufficient connectivity and embedded with a 10W speaker to deliver stunning audio performance.
Key Features
DLP Darkchip3 & BrilliantColor Technology
The DW2350Z-ST supports DLP®chip3 and BrilliantColor™ technologies to ensure brilliant pictures, with optimal black levels and vivid, colorful images with a contrast ratio of 3,000,000:1 for high contrast, accurate, and vibrant colors.
Bright Images in any Environment
Packed with up to 3,800 lumens of brightness and a high contrast ratio 3,000,000: 1, the DW2350Z-ST provides sharp and bight images in any environment with ambient light.
High Standard Anti-Dust Protection
The optical system, from the laser light source to lens is completely sealed and rated IP5X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.
Supports HDR and HDMI 2.0
This DW2350Z-ST of HDR compatible projector is capable of receiving and displaying HDR meta data and can provide a brilliant visual experience with more detail and texture when projected over long distance. With an HDMI 2.0 interface, these projectors also support 4K signals.
Large Image Size
DW2350Z-ST with its short throw design can project up to a 150-inch large and clear image from a short distance to save the space.
Flexible Installation
Support vertical / horizontal keystone correction and 4-corner geometric adjustment, allowing for virtually unlimited mounting flexibility.
Long Lifespan
The DW2350Z-ST projector is used laser light source for a long life span of up to 30,000 hours, guaranteeing a long service life which greatly reduces energy consumption and maintenance costs. This laser projector can automatically maintain constant and stable brightness over a long period of time.
Display
Projection System
1-Chip DLP™ 0.65 inch
Resolution
WXGA (1280 x 800)
Light Source
Laser
Optics
Brightness
3,800 lm
Brightness Uniformity
80%
Contrast Ratio
3,000,000:1 (Full On/Off)
Light Source Life
20,000 hrs (Normal)
Lens Type
Fixed
Zoom Ratio
N/A
Lens Throw Ratio
0.492 :1
Lens Shift – Horizontal (Full Image Width)
N/A
Offset (Full Image Width)
107%
Geometry Adjustment
Keystone Correction
Yes (H/V), Auto V Keystone
Four Corner Adjustment
Yes

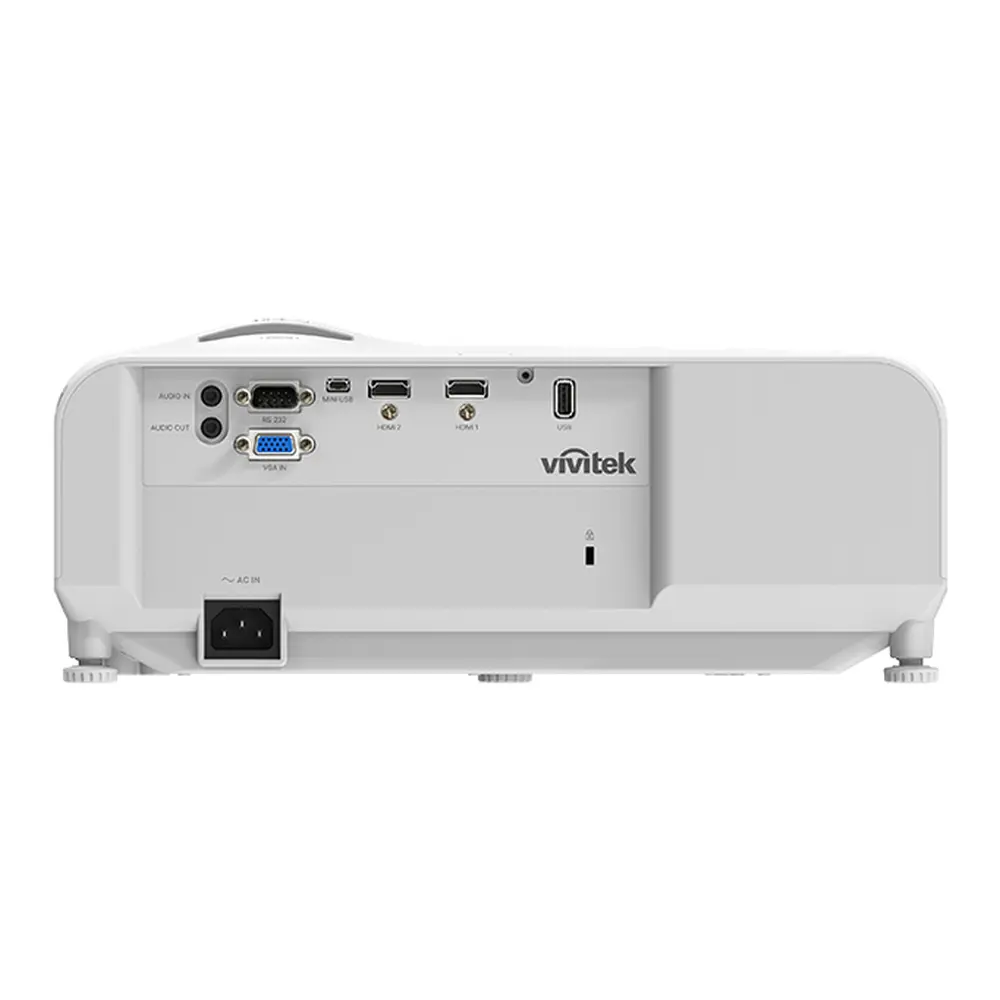

I/O Terminal
HDMI
2.0 x2
DisplayPort
N/A
SDI
N/A
DVI-D
N/A
YPbPr
N/A
D-Sub
In x1
3D Sync
N/A
RJ45
N/A
RS-232
In x1
Wire Remote
N/A
Speaker
10W x1
USB
Type A (Power Only 5V/1.5A) x1 / mini-B (Service) x1
12V Trigger (mini Jack)
N/A
5 BNC
N/A
Audio
Audio-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1
System
Power Supply
AC 100-240V 50/60Hz
Power Consumption ±5%
195W (Normal) / 155W (Eco)
Standby Power
< 0.5W
Acoustic Noise ±5%
Normal 35dB / Eco 33dB
Dimension ±2%
353 x 290 x 144 mm
Weight ±1kg
4.5 kg
3D Display
Active
24×7 Operation
N/A
Dust Proof*4
Up & Down
Operation Environment
Temp. 5~40˚C / Humidity10~85%
Storage Environment
Temp. -10~60˚C / Humidity 5~95%
